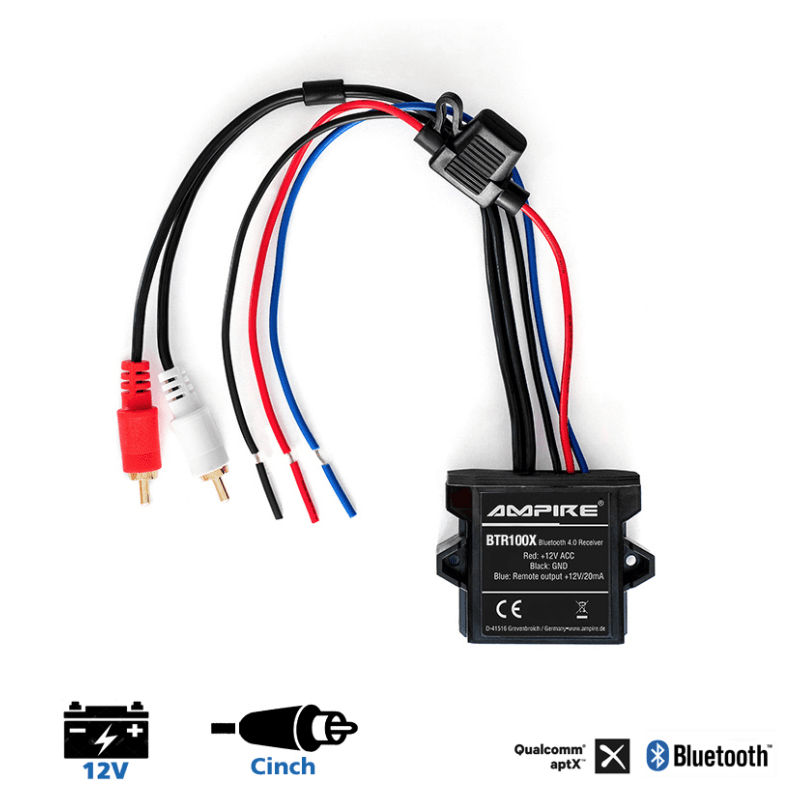

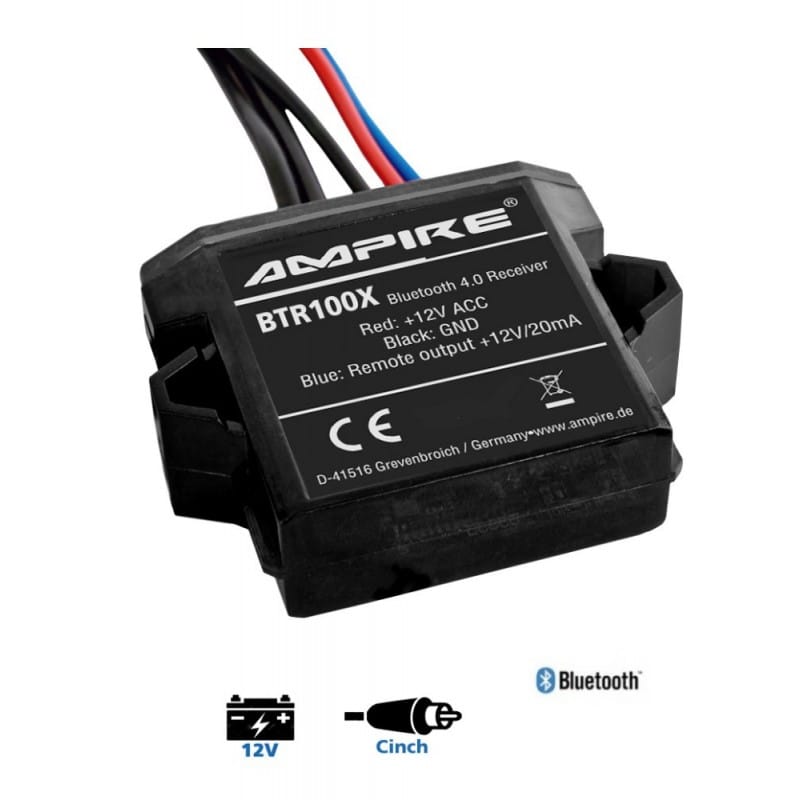

Ampire BTR100X Bluetooth A2DP RCA Music Receiver

SPECIFICATIONS
Marine certified
With auto-on function
Bluetooth 4.0 CSR8645 certified
3.5mm jack output with 1.0V signal output
QDL license
SSID Name: BTR100X
aptX Audio-Codec from Qualcomm®
Bit rate: up to 345 kBit/s

CONNECTIONS
Blue: +12V/20mA remote output wire
Red: +12V ignition (ACC) 2A Fuse
Black: GND
3.5mm jack

BLUETOOTH LICENSE
Declaration ID D025151
Referenced Qualified Design ID 56386
Listing Date 08 December 2014

PAIRING
Ensure your streaming device has Bluetooth enabled
Turn the ignition on (ACC)
The LED (6) begins to flash (pairing mode)
Select BTR100X from your device's Bluetooth settings menu
When successfully connected, the LED on the BTR100X will stop flashing and remain lit. A single beep will be heard through the connected sound system

ATTENTION
Multiple devices can be paired with the BTR100X, but only one device can connect at a time
The BTR100X will remember the last device that was connected to it and will automatically reconnect. If that device is not active, other paired devices can connect manually or new devices can be paired
When a connected device is out of range for more than one minute, the BT100X will automatically disconnect it and return to pairing mode [the LED (6) starts flashing]

OPERATION
Once connected, audio is controlled from the streaming device. This includes volume and media selection.
The BTR100X can be installed out of sight, as it has no user controls that need to be accessed

Installation Manual

BTR100X
