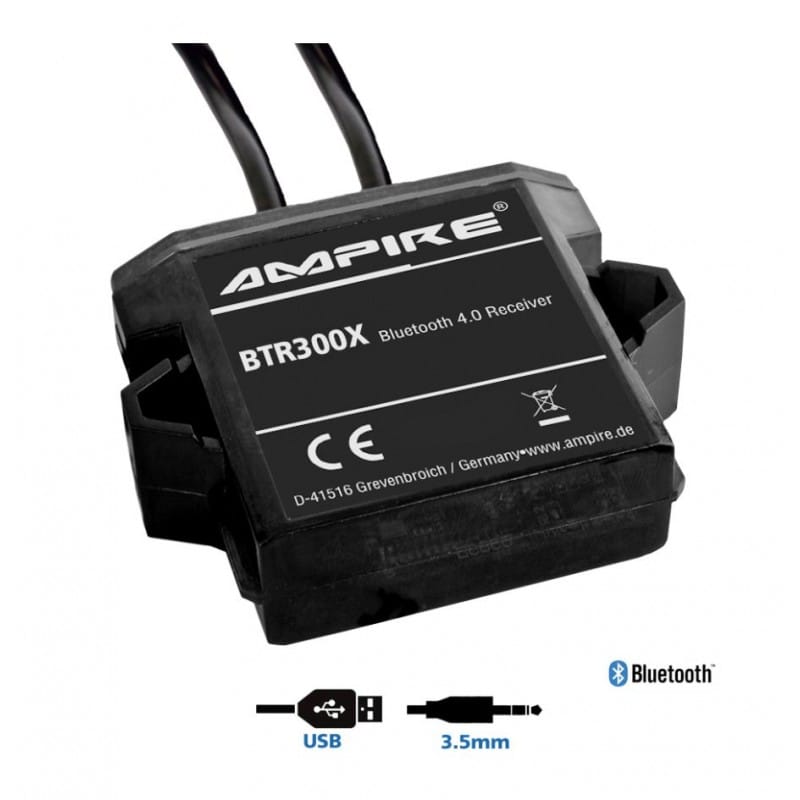

Ampire BTR300X Bluetooth Music Receiver A2DP Jack USB

SPECIFICATIONS
Marine certified
With auto-on function
Bluetooth 4.0 CSR8645 Certified
3.5mm jack output with 1.0V signal output
QDL license
SSID Name: BTR300X
Qualcomm® aptX Audio-Codec
Bit rate: up to 345 kBit/s

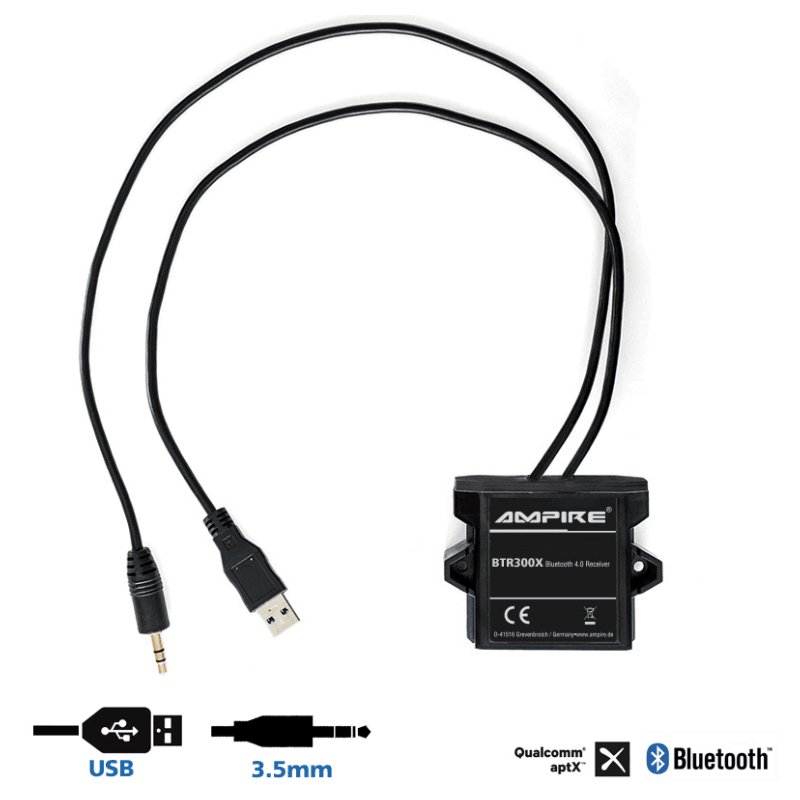

CONNECTIONS
USB input (5 VDC) (300 mm)
3.5mm jack output (300 mm)

BLUETOOTH LICENSE
Declaration ID D025151
Referenced Qualified Design ID 56386
Listing Date December 08, 2014

PAIRING
Ensure your streaming device has Bluetooth enabled
Turn the ignition (ACC) on
The LED (6) starts to flash (pairing mode)
Select BTR300X in your device's Bluetooth setup menu
When successfully connected, the LED on the BTR300X will stop flashing and remain lit. A single beep will be heard through the connected sound system

ATTENTION
Multiple devices can be paired with the BTR300X, but only one device can connect at a time
The BTR300X will remember the last device that was connected to it and will automatically reconnect. If that device is not active, other paired devices can manually connect or new devices can be paired
When a connected device is out of range for more than one minute, the BTR300X will automatically disconnect it and return to pairing mode [the LED (6) starts to flash]

OPERATION
Once connected, audio is controlled from the streaming device. This includes volume and media selection.
The BTR300X can be installed out of sight, as it has no user controls that need to be accessed

Installation Manual
BTR300X
