5" Universal Dashboard Monitor Ampire RVA051 AHD CVBS

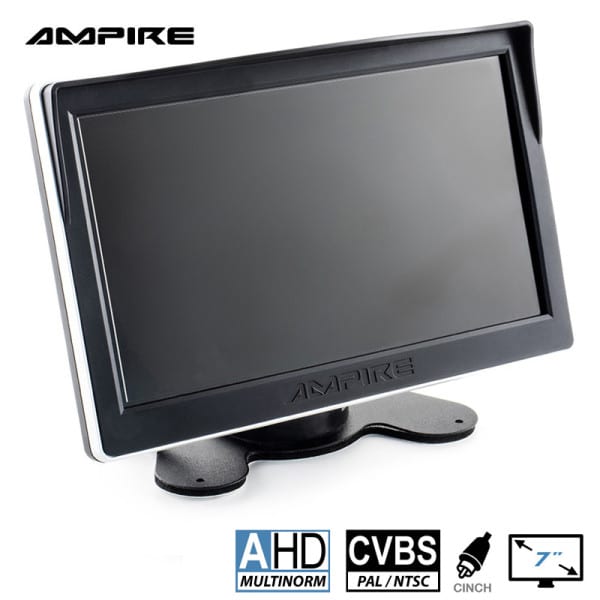

This 12.7 cm (5-inch) high-resolution digital LCD surface-mounted monitor is a compact monitor for up to two AHD or CVBS reversing cameras. If you don't have space for larger monitors in your vehicle or would like to install a monitor instead of the interior mirror, the RVA051 is the first choice. You will always find an installation location for the universal RVA051. It is also ideal for reversing cameras thanks to the wide range of digital image display settings.

TECHNICAL DATA
12.7 cm (5'') HD digital TFT LCD display (colour)
Viewing angle 85°/85°/85°/85°/85° (L/R/U/D)
LED backlight
Screen format 16:9
High resolution 800x480 pixels (HD)
2x video inputs
Supports AHD 720P, AHD 1080P
CVBS (FBAS) supported
NTSC/PAL compatible
Brightness 600 cd/m²
Contrast 500:1
Normal/mirror image display
Normal/rotated 180° image display
Adjustable/disabled guide lines
Automatic switch-on (2 sec.)
Operating voltage 9-32 Volts DC
Power consumption (12V) 250mA (operation) 150mA (ignition on)
Operating temperature -20° to 70°C
Storage temperature -30° to 80°C

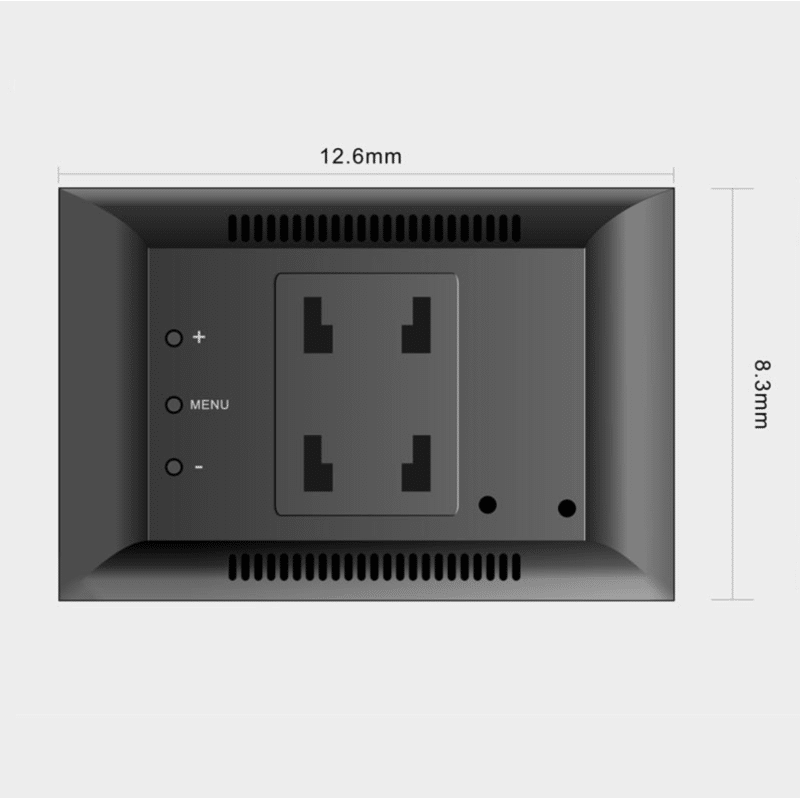

Monitor dimensions 126x83x33mm
Our monitors are subject to ISO 9241-307, pixel error class II
6 different menu languages

PACKAGE CONTENTS
5" (12.7 cm) AHD monitor

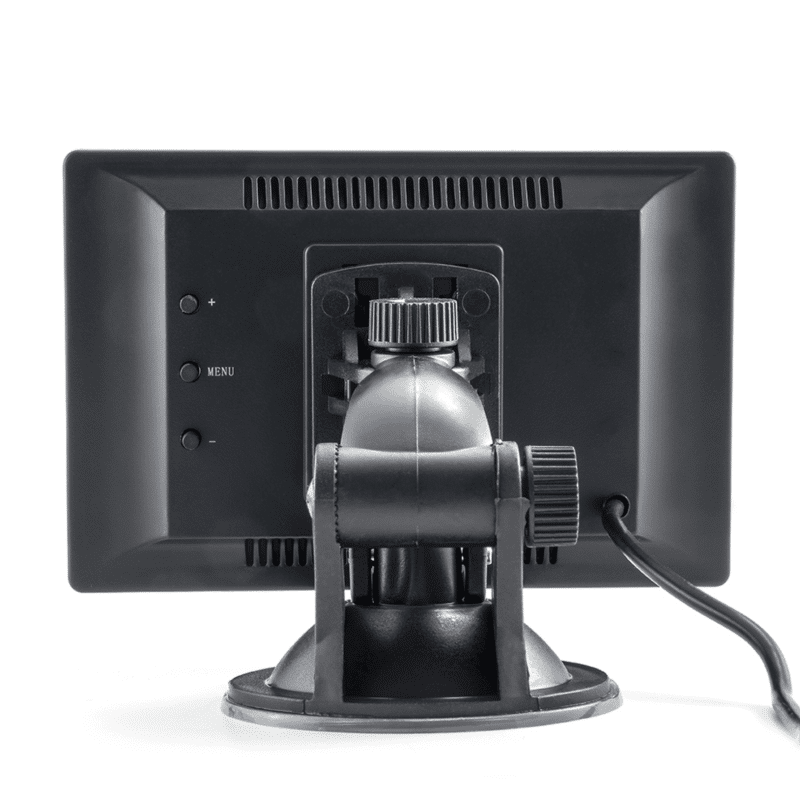

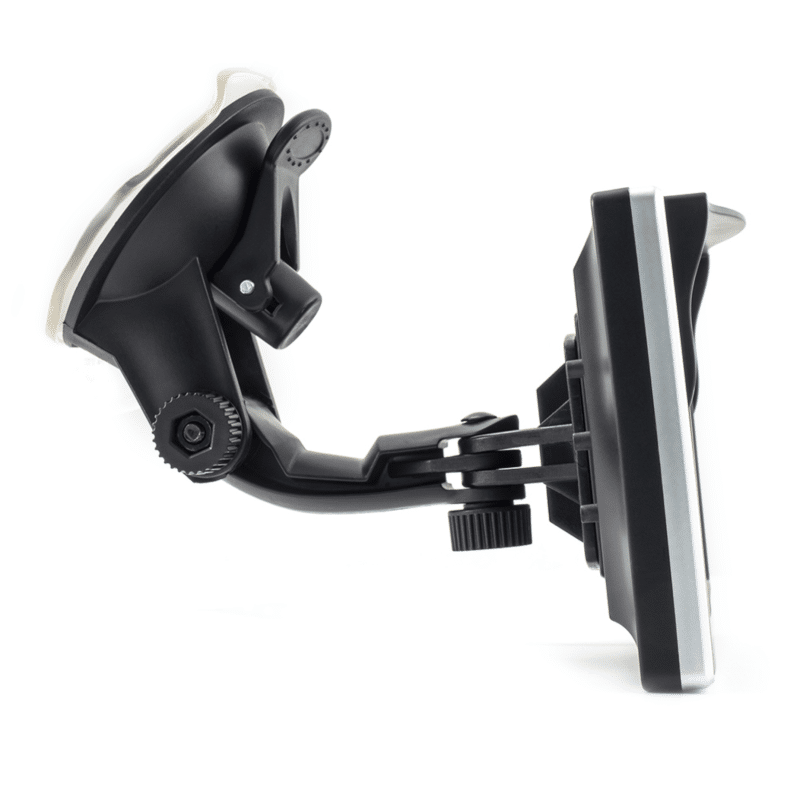

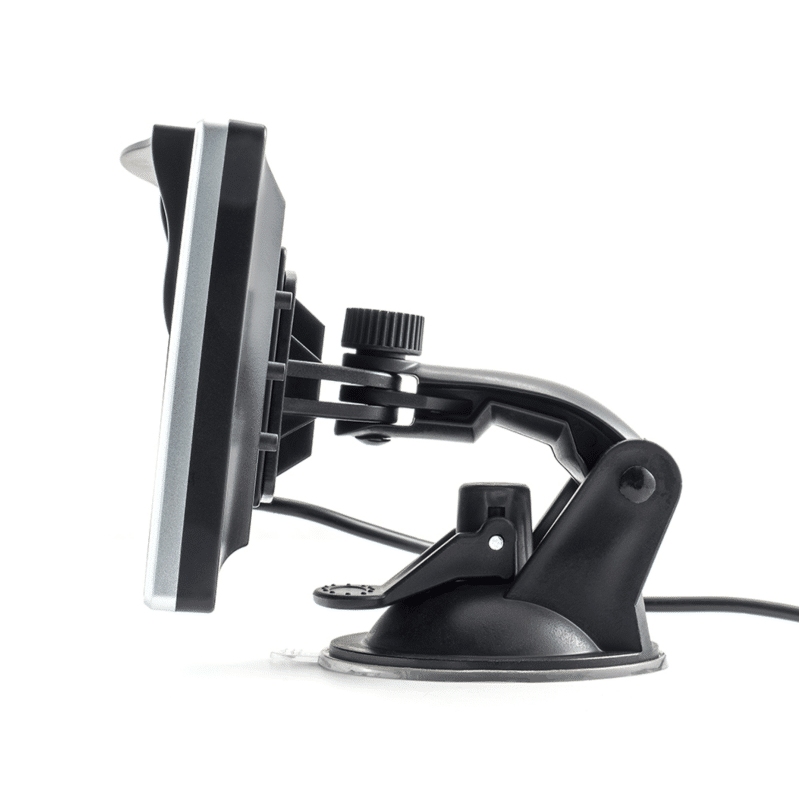

Suction cup mount
Adhesive base mount
Connection cable
