Morel Maximo Ultra 502 MKII 5" 13cm 2-Way Component Speakers

Morel has invested the same passion, engineering, and philosophy that has earned countless awards for car speakers into the development of the new MAXIMO ULTRA line, consisting of two-way component systems and coaxial speakers.

Following Morel's philosophy of high-quality musical systems, it features some of the company's innovative technologies and new design characteristics. Designed to be easily installed in factory locations and integrate with factory units.

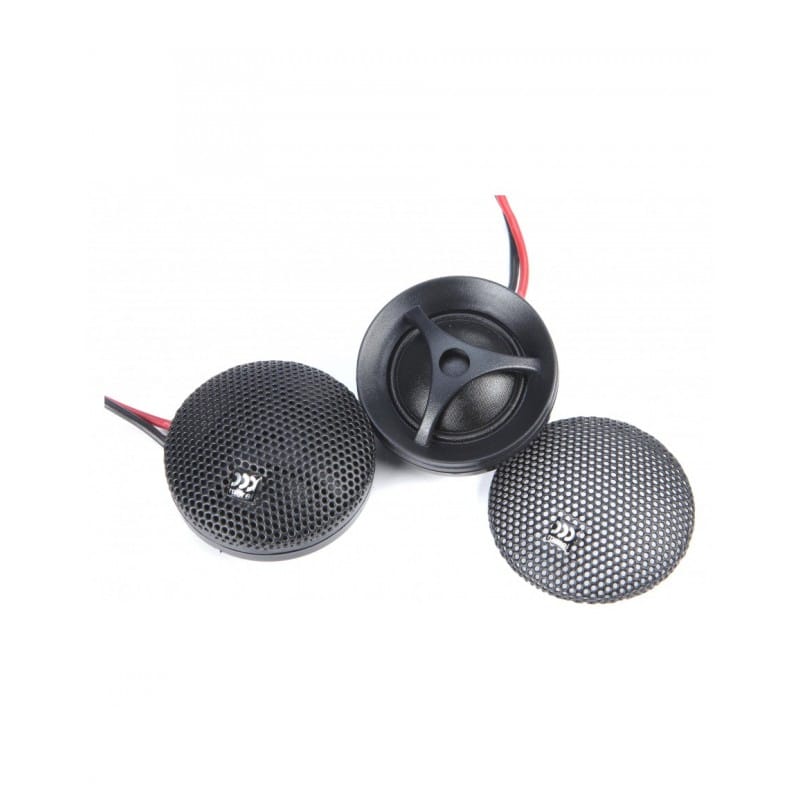

The Maximo Ultra two-way component system drivers consist of a new 25mm (1") diameter soft dome tweeter, which employs external voice coil (EVC) technology developed specifically for the Maximo Ultra. The tweeter design sets new standards for power handling and low distortion for this price level, providing pleasant musical sound reproduction. Its four mounting options make installation easy and hassle-free.

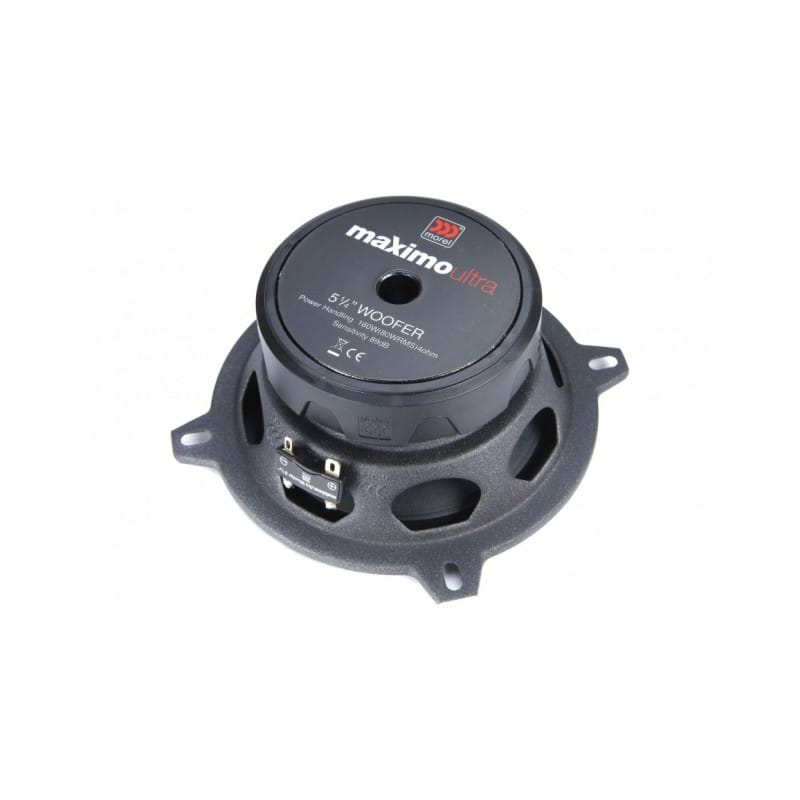

The new Maximo Ultra woofer features a high-grade ferrite magnet motor that provides greater magnetic flux over its predecessor, increased power handling capability, and improved efficiency. The new design uses a special treated paper cone and computer-modeled suspension for highly linear movement during low-frequency midrange reproduction, thereby reducing distortion and increasing bass dynamics.

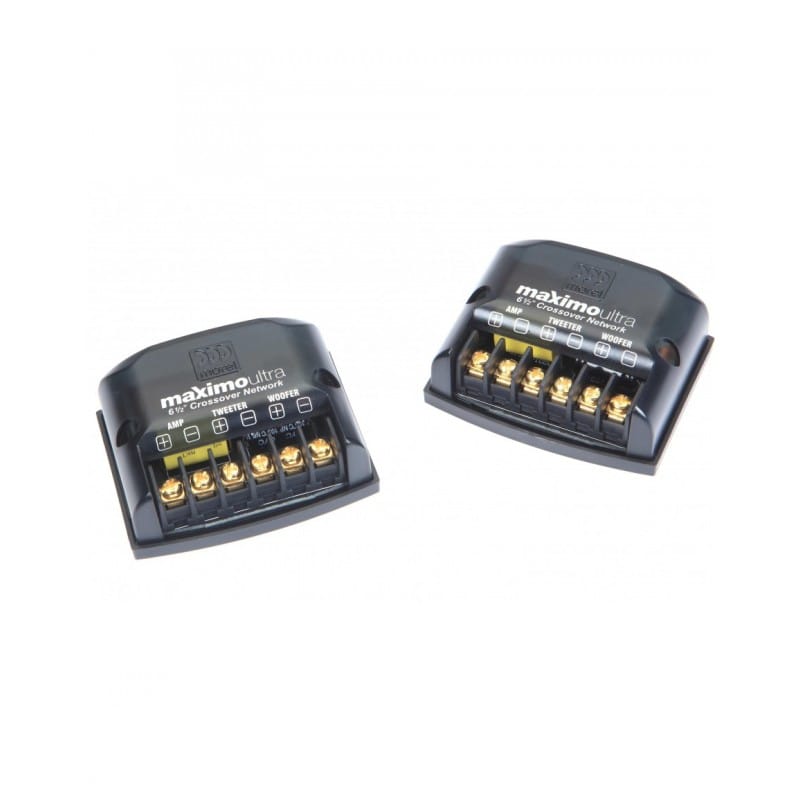

The crossover network is built to handle more power than the speakers using high-quality components. This minimizes component saturation, which can cause speakers to distort prematurely, allowing the Maximo Ultra to reach its full potential.

The Maximo Ultra offers you the best performance in its class. Available in 5" and 6.5" separate component systems and 4", 5", 6.5" and 6x9" coaxial speakers.

TECHNICAL SPECIFICATIONS

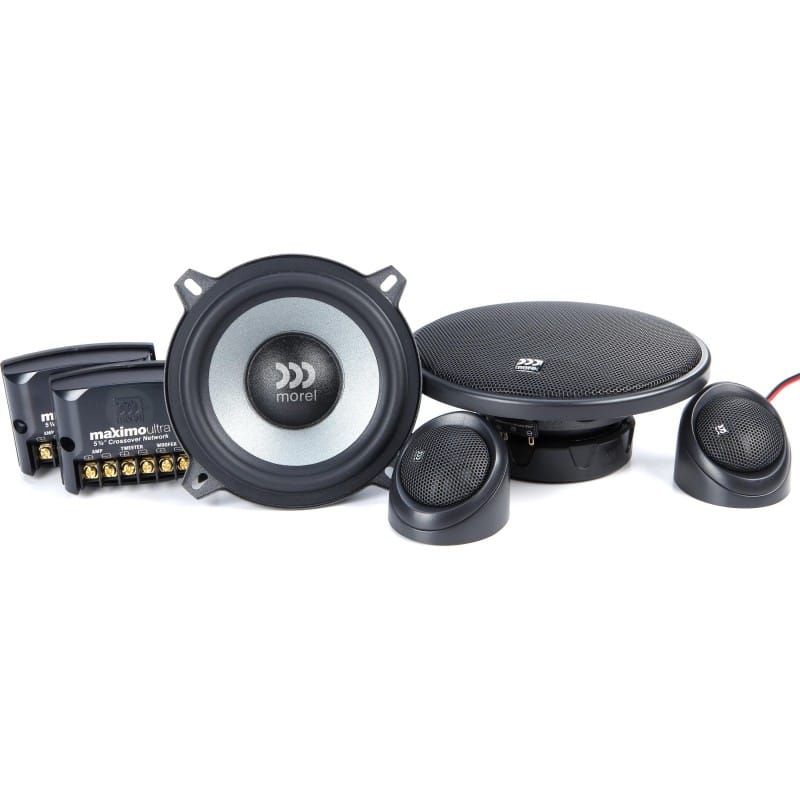

2-way component system, 13 cm (5")
Power 90 Watts RMS / 160 Watts Max
Impedance 4 Ohms
Treated paper composite woofer cone with butyl rubber surround
25 mm soft dome tweeter
In-line crossover to protect the tweeter
Sensitivity 89dB
Frequency Response 50Hz - 20kHz
57 mm, Ø 120 mm

Maximo-ultra-5-and-6-sets-manual
Maximo Ultra Specifications
Morel car audio catalogue

Note: Before purchasing, compare the photos presented with the original product; if in doubt, contact us using the available means
